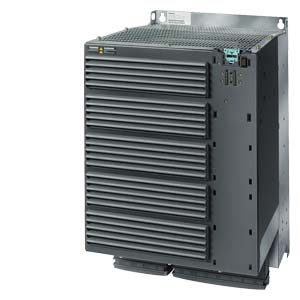

SIEMENS - 6SL32250BE375AA0 - SINAMICS G120, PM250_FSF_400V_FLT, 75KW
Item #:
SIE 6SL32250BE375AA0
Product Info
6SL32250BE375AA0
Siemens
6SL32250BE375AA0
Manufacturer ID #: 662643434729
Returnable:
No
SINAMICS g120 power module pm250 with built in cl. a filter possibility of regeneration 3AC380-480v +10/-10% 47-63HZ output high overload 75KW for 200% 3s,150% 57s,100% 240s ambient temp -10 to +50 deg c output light overload 90KW for 150% 3s,110% 57s,100% 240s ambient temp -10 to +40 deg c 934 × 350 × 316 (hxwxd), fsf protection IP20 without control unit and bop
Specifications
- Length: 47.250000000 in
- Weight: 112.440000000 lbs
- Country of Origin: Germany
- 4-quadrant operation possible: true
- Application in domestic- and commercial area permitted: false
- Application in industrial area permitted: true
- Degree of protection (IP): IP20
- Depth: 316 mm
- Height: 934 mm
- Integrated breaking resistance: false
- Mains voltage: 380 V
- Max. output at linear load at rated output voltage: 75 kW
- Max. output at quadratic load at rated output voltage: 90 kW
- Max. output frequency: 550 Hz
- Nominal output current I2N: 178 A
- Number of phases input: 3
- Number of phases output: 3
- Relative symmetric net frequency tolerance: 5
- Relative symmetric net voltage tolerance: -10
- Type of converter: U converter
- Width: 350 mm
