SIEMENS - 82ADE6FAG - PUMP PANEL,S1,SSOLR,240VAC,DISC
Item #:
SIE 82ADE6FAG
Product Info
82ADE6FAG
Siemens
82ADE6FAG
Manufacturer ID #: 887621859756
Returnable:
Yes

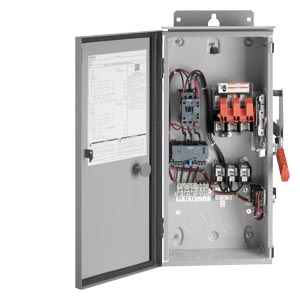

Slim Line Pump Control Panel NEMA size 1 H2 Solid-state overload relay OLR amp range 10-40A 220/230V 50/60Hz Coil 30A fusible disconnect 30A/250V fuse clip 1NC / 1NO auxiliary contacts HOA Sel. Sw. <(><<)>(> & <(><<)>)> Start/Stop P.B. 3-point power terminal block 3-point control terminal block 3-point ground lug Enclosure NEMA type 3/3R Weather proof outdoor use
Specifications
- Weight: 23.000000000 lbs
- Country of Origin: United States
- External reset possible: true
- Kind of motor starter: Other
- Number of auxiliary contacts as normally closed contact: 1
- Number of auxiliary contacts as normally open contact: 1
- Number of command positions: 0
- Overload release current setting: 10 A
- Rated control supply voltage Us at AC 50HZ: 220 V
- Rated control supply voltage Us at AC 60HZ: 220 V
- Rated control supply voltage Us at DC: 0 V
- Release class: Other
- Voltage type for actuating: AC
- With short-circuit release: true
- With transformer: false
